Symbol Libraries

Design single workstations or complete floor plans

An overhead illustration of a series of benches overlayed in a teal color wash

Download Our Libraries

Please be patient. Catalog files vary in size and some are quite large. These may take several minutes to download. Once a product catalog has been downloaded, the corresponding menu item will be available.

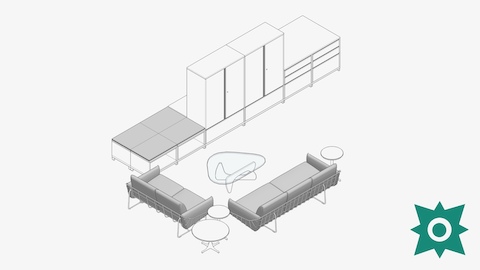

An overhead view of a lounge area with wireframe couches, a Noguchi coffee table and a storage unit with integrated seating and a Revit Add-In symbol in the bottom right corner.

Revit Add-In

CAD Pack Furniture Manager is an Add-In utility for Revit Architecture. It provides a Family Library of Herman Miller products for use in designing workspaces or complete floor plans.

View Content Summary

Download Revit Add-In

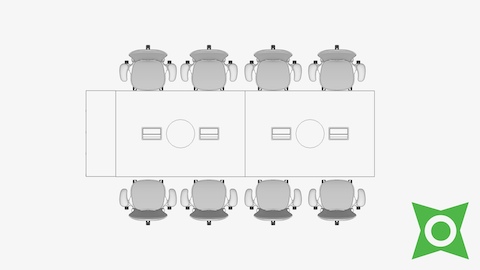

An overhead view of a conference table with Mirra 2 Chairs and a CAD Pack for AutoCAD Add-In symbol in the bottom right corner.

CAD Pack for AutoCAD

CAD Pack software gives designers an AutoCAD symbol library of Herman Miller products for use in designing single workstations to complete floor plans.

View Content  Summary

Download CAD Pack

Materials Libraries

Enhance the expression of your space with unique materials, from textiles to finishes to laminates and more.

Folded, multicolor materials swatches laid out in a row.

Materials

These are tileable swatches for rendering that are also compatible with the Autodesk Material Library files.

Download Materials

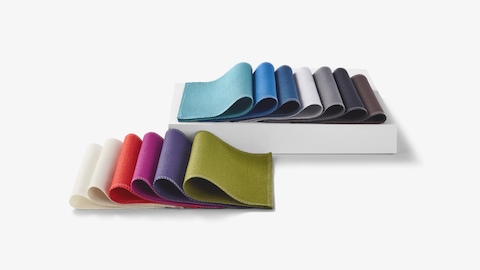

Two sets of folded, multicolor materials swatches laid out in rows with the back row elevated on a white box.

Materials Libraries

These are Autodesk Material Library files (.adsklib) that can be loaded into Revit for quick access to Herman Miller materials.

Download Materials Libraries

FAQs

  • How do I install Revit Add-In?

    After installing CAD Pack Furniture Manager, follow these steps to install the product catalogs:

    1. Start Revit and stay on the Welcome Screen (before going into a Project or Family).
    2. Open Catalog Update from CAD Pack Furniture Manager Ribbon.
    3. Select the catalogs to download.
    4. Click Update button to begin process

  • How do I install CAD Pack product catalogs for AutoCAD?

    After installing CAD Pack, follow these steps to install the product catalogs:

    1. Open CAD Pack application using icon on desktop.
    2. Open Catalog Manager by selecting from menu "Product Catalogs," then "Download Catalogs".
    3. Select the catalogs to download.
    4. Select button "Download Catalogs" to begin process.
    5. Select "What's New" to view monthly catalog updates.

  • What platforms are needed to run CAD Pack for AutoCAD?

    • Windows 10, Windows 7, and Windows XP (SP3)
    • AutoCAD 2014-2020 (Direct product placement and CAD Pack Utilities)
    • Any CAD system that supports the DWG file format

View All FAQs
